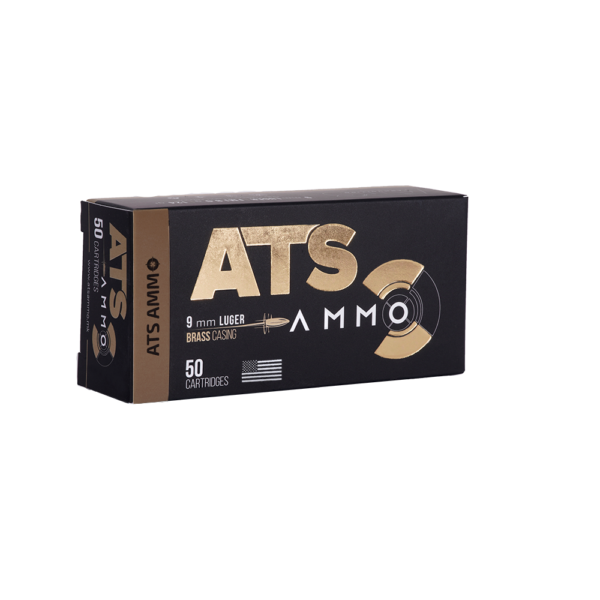

ATS AMMO 9 mm LUGER 50 rdsThis product is currently out of stock and unavailable.
9 x 19mm LUGER – cartridge
The 9 x 19 mm LUGER has become the most popular caliber for law enforcement agencies and modern sports shooting, because of wide range of self-loading compact pistols and sub-machine guns with large magazine capacity of such ammunition.
9mm LUGER – FMJ bullet
The full metal jacket bullets with lead core are produced in weight 7.5 g / 8.0 g / 9.0 g. The jacket is made from CuZn10/30 and the bullet core is made from PbSb.
9 x 19mm LUGER– case
The caliber 9 x19 mm CuZn30 case is intended for inserting the powder charge, primer and bullet.
|Cartridge Length||mm||max 29.69 mm|
|Cartridge weight||g||min 12.1 g – max 12.65 g|
|Grain bullet||Type||FMJ, Ball|
|Grain Bullet weight||g/gr||8.0 ± 0.1 / 124|
|Grain Bullet length||mm||max 15.8 mm|
|Grain Bullet material||–||Jacket – CuZn10/CuZn30; Core – Lead|
|Rounds per box||#||50|
ELECTRONIC PRESSURE, VELOCITY AND ACTION TIME (EPVAT)
|Velocity at 16 m, m/s||V = 355 ± 8 m/s||The Maximum Velocity Difference between
+52°C/-54°C and 21°C samples is ± 30 m/s
|Velocity at 5 m, m/s||V = 365 ± 8 m/s|
|The Maximum Corrected Mean
Case Mouth Pressure , Mpa
|P + 3SD ≤ 285 Mpa||Maximum case mouth difference between
+52°C/-54°C and 21°C samples is ± 65 Mpa
|Action time, ms||≤ 3ms||No requirement|
|Muzzle energy at 16 m, J
(for grain bullet weight from 7 to 8.3 g)
|491 – 713 J||No requirement|
The 9 x 19 mm LUGER has become the most popular caliber for law enforcement agencies and modern sports shooting, because it can be used with a wide range of self-loading compact pistols and sub-machine guns with large magazine capacity.
9 mm LUGER – FMJ bullet
The full metal jacket bullets with lead core weigh
8 g. The jacket is made of CuZn10/30 and the bullet core is made of PbSb.
9 x 19 mm LUGER – case
The caliber 9 x 19 mm CuZn30 case is designed to house the powder charge, the primer and the bullet.
